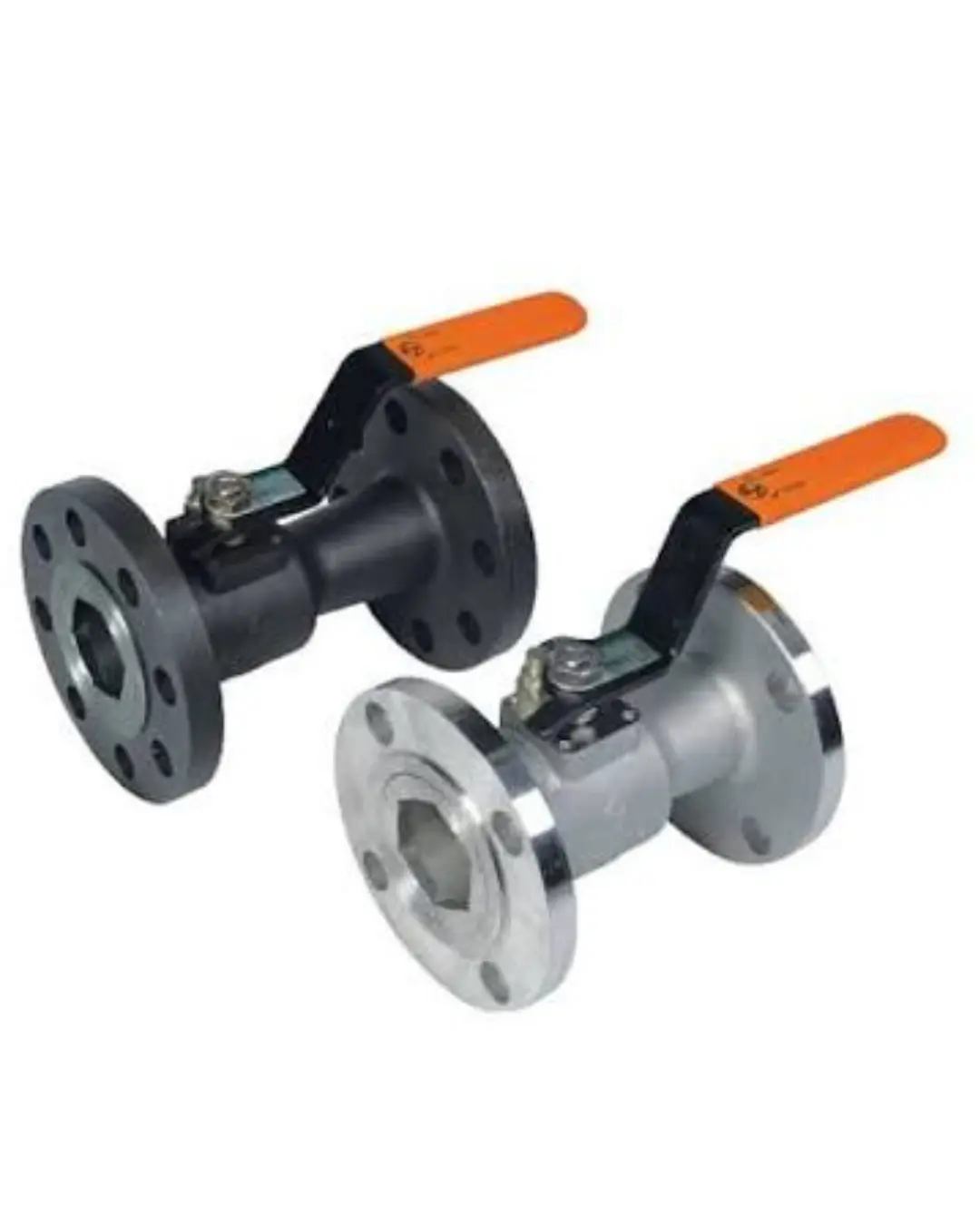

AUDCO 2 Piece Design Ball Valve
Audco 2-Piece Design Ball Valves (manufactured under L&T Valves / Audco) are split-body, end-entry isolation valves designed for tight shut-off, low operating torque, and high flow efficiency. Featuring a sturdy 2-piece body held together by heavy-duty bolting, these valves eliminate potential leak paths compared to 3-piece variants while offering full-bore straight-through flow across process pipelines.
Technical Specifications
|
Feature |
Specification Details |
|
Size Range |
½" to 12" (DN15 – DN300) |
|
Pressure Ratings |
ASME Class 150 and Class 300 |
|
Design Standards |
ISO 17292, BS 5351, ASME B16.34, API 6D |
|
Testing Standards |
API 598, BS EN 12266-1 |
|
Fire Safety Certification |
API 607 / ISO 10497 (Fire-safe tested design) |
|
Face-to-Face Standard |
ASME B16.10 |
|
End Connections |
Flanged Ends (ASME B16.5 RF - Raised Face) |
|
Temperature Limits |
-29 °C to +200 °C (dependent on soft seat material selection) |
Material Options
- Body Materials: ASTM A216 WCB (Carbon Steel), ASTM A351 CF8 (SS304), ASTM A351 CF8M (SS316)
- Ball & Stem: Stainless Steel AISI 304 / 316 (solid, mirror-polished floating or trunnion-mounted design)
- Seat Ring Options: Virgin PTFE, Glass-Filled PTFE (GFT), Carbon-Filled PTFE (CFT), PEEK (for high-temp duties)
- Gland Packing & Gaskets: Flexible Graphite with braided packing for fire-safe performance
Key Features & Applications
- Compact Split-Body Construction: Reduces body joints and potential external leakage points while facilitating rigid structural integrity.
- Safety Integration: Features an anti-blowout stem design, built-in antistatic grounding devices (ball-to-stem-to-body), and primary soft seats backed by secondary metal-to-metal seating for fire safety.
- Actuation Ready: Equipped with an ISO 5211 top flange for easy mounting of pneumatic actuators, electric actuators, or gear boxes.
- Common Applications: Hydrocarbon transport, refining, chemical process lines, water treatment facilities, utility headers, and general industrial fluid isolation.
