Spirax / Forbes Marshall Thermostatic Air Vent AV21 / BPT21: Technical Specifications, Operation, and Buying Guide

Introduction

Air trapped inside steam lines and processing equipment is one of the primary causes of reduced heat transfer, cold spots, delayed system warm-up, and internal equipment corrosion. When steam enters a cold system during startup, large volumes of air must be rapidly purged to allow pure saturated steam to fill the heating space.

The Spirax / Forbes Marshall Thermostatic Air Vent AV21 (Balanced Pressure Thermostatic BPT21 Series) is a high-performance, forged carbon steel air vent designed specifically to automatically purge air and non-condensable gases from medium-to-high pressure industrial steam systems. Built with an ASTM A105 forged body, a bolted cover, and a balanced pressure thermostatic capsule element, the AV21 / BPT21 protects process efficiency while completely preventing live steam loss.

Product Overview

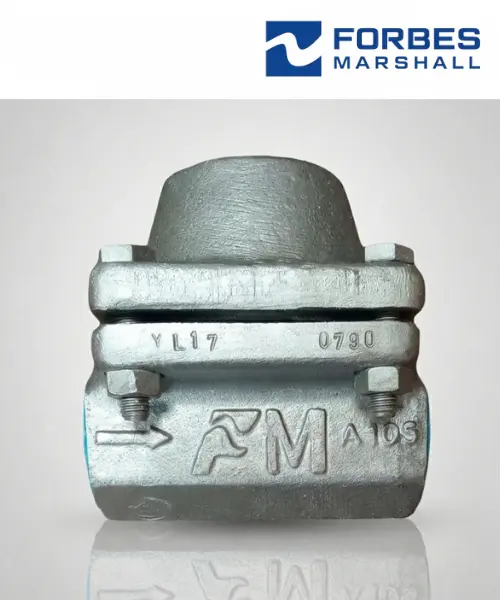

The Spirax / Forbes Marshall AV21 / BPT21 Thermostatic Air Vent features a heavy-duty forged steel housing and an internal stainless steel capsule assembly.


Operating Principle

• Cold Start Air Purging: During cold plant startup, air fills the steam equipment and piping. The thermostatic capsule is fully contracted, holding the valve off its seat to allow large volumes of air to rapidly vent out.
• Tight Steam Shut-Off: As live steam approaches the vent, heat causes the liquid fill inside the sealed thermostatic capsule to boil and vaporize. The internal vapor pressure expands the capsule diaphragm, snapping the valve head tightly shut against the seat before steam can escape.
• Continuous Non-Condensable Gas Removal: Any air or non-condensable gases that accumulate during normal operation reduce the temperature surrounding the capsule slightly below steam saturation temperature. The capsule contracts, purges the accumulated air, and instantly snaps shut when steam returns.

Technical Specifications

The technical parameters for the Spirax / Forbes Marshall AV21 / BPT21 Thermostatic Air Vent are detailed below:

Key Features

• Balanced Pressure Thermostatic Element: Continuously adjusts to fluctuating steam pressures, opening a few degrees below saturation temperature to purge air without letting live steam escape.
• Forged Steel ASTM A105 Construction: High-strength forged carbon steel housing rated up to 21 bar g provides exceptional pressure containment and resistance to thermal shock and water hammer.
• Bolted Cover Top Access: The multi-stud bolted bonnet allows rapid inspection, cleaning, or capsule replacement without disconnecting the body from the steam line.
• Corrosion & Erosion Resistant Internals: Stainless steel valve seat and capsule resist damage from aggressive chemicals, thermal stress, and acidic condensate.
• High Cold-Start Venting Capacity: Rapidly discharges air during initial warm-up phases, significantly reducing boiler fuel consumption and equipment warm-up time.
• Self-Draining Mechanism: Vertical high-point mounting allows complete drainage during shutdown, making it freeze-proof in exposed outdoor piping environments.

Applications

The reliable thermostatic operation and forged body of the Spirax / Forbes Marshall AV21 / BPT21 Air Vent make it ideal for a wide range of industrial process applications:

• Steam Line High Points & Dead Ends: Installed on top of long steam distribution lines to purge air pockets created during shutdown.
• Shell-and-Tube Heat Exchangers & Reboilers: Purges trapped air from steam chests, restoring heat transfer rates and preventing temperature hunting.
• Jacketed Vessels & Autoclaves: Essential in pharmaceutical reactors, food processing kettles, and rubber vulcanizers where air pockets cause cold spots.
• Sterilizers & Medical Equipment: Ensures 100% steam saturation for reliable sterilization cycles.
• Steam Separators & Flash Vessels: Continuous removal of non-condensable gases from moisture separators and flash recovery vessels.

Benefits

• Maximizes Process Heat Transfer: Prevents air films from insulating heating surfaces, ensuring fast, uniform processing and batch consistency.
• Saves Energy & Fuel: Rapid air discharge during startup reduces plant warm-up times, lowering fuel usage.
• Prevents Condensate Pipe Corrosion: Eliminates oxygen and carbon dioxide gases from the steam space, stopping carbonic acid corrosion in condensate lines.
• Low Maintenance Overhead: Durable forged steel body and simple top-entry bolted cover ensure long service life and easy maintenance.

Spirax / Forbes Marshall Dealer in Ahmedabad and Gujarat

Chemical manufacturing plants, pharmaceutical complexes, refineries, textile mills, and food processing facilities across Gujarat—including industrial belts in Vadodara, Ankleshwar, Bharuch (Dahej PCPIR), Surat, Vapi, Changodar, Sanand, and Ahmedabad—rely on high-quality thermostatic air vents to maintain process heat efficiency. Sourcing through an authorized Spirax / Forbes Marshall valve dealer in Ahmedabad ensures original equipment supplied with official 3.1 Manufacturer Test Certificates (MTC) and material traceability.

Key industrial regions with strong demand for Spirax / Forbes Marshall AV21 and BPT21 air vents include:

• Ahmedabad: Chemical process plants, pharmaceutical machinery manufacturers, textile units, and steam engineering hubs in Vatva, Naroda, Odhav, Changodar, and Sanand.
• Gujarat Industrial Belts: Dahej PCPIR, Ankleshwar GIDC, Hazira (Surat), Vadodara, Vapi, and Morbi.

Partnering with an established Spirax Marshall supplier in Gujarat provides ready stock availability, expert sizing support, and direct project pricing.

Why Choose Awal Valve

When procuring industrial steam management hardware like the Spirax / Forbes Marshall AV21 / BPT21 Thermostatic Air Vent, AV32 / FMAV53, APT14 / SOPT Automatic Pump Trap, CMTOFT / TOFT, FT20 (SOFT53), or TD120M, Awal Valve is your premier industrial supply partner across Gujarat.

Why partner with Awal Valve:

• 100% Genuine Products: Direct supply of original Spirax Marshall and Forbes Marshall thermostatic air vents, float traps, thermodynamic traps, and pressure reducing valves.
• Ready Local Inventory: Stocking of air vents (AV21, BPT21, AV32), float traps, and accessories across standard sizes (1/2" and 3/4") and pressure classes.
• Technical Sizing & Air Purging Assistance: Expert guidance on sizing air vents, calculating startup air volumes, and designing high-point venting points.
• Competitive Project Rates: Transparent pricing, bulk discounts, and prompt dispatch for shutdowns and new plant construction.

Conclusion

The Spirax / Forbes Marshall Thermostatic Air Vent AV21 (BPT21 Series) provides a rugged, responsive, and efficient solution for automatic air removal in industrial steam systems. Constructed with a high-strength ASTM A105 forged carbon steel body, 21 bar g pressure rating, bolted cover top entry, and stainless steel thermostatic capsule, the AV21 / BPT21 accelerates warm-up times, protects steam lines from acid corrosion, and maximizes process thermal output.

For technical datasheets, air venting capacity calculations, or immediate price quotations in Gujarat, contact Awal Valve—your trusted supplier for Spirax / Forbes Marshall steam equipment and industrial valves.

Frequently Asked Questions (FAQs)

Q1: What is the primary difference between the AV21 and AV32 thermostatic air vents?

A: The AV21 / BPT21 is rated for pressures up to 21 bar g (PN21), whereas the AV32 / FMAV53 is rated for higher pressure applications up to 32 bar g (PN40).

Q2: What does "BPT" stand for in the model name?

A: "BPT" stands for Balanced Pressure Thermostatic. It refers to the internal capsule element, which balances internal expansion against varying steam line pressures to open just below steam saturation temperature.

Q3: Where should an AV21 / BPT21 air vent be installed in a piping network?

A: It should always be installed vertically at the highest point of steam equipment, steam main ends, heat exchanger steam spaces, and vessel jackets where air naturally collects.

Q4: How can I buy authentic Spirax / Forbes Marshall AV21 / BPT21 air vents in Gujarat?

A: You can source authentic Spirax / Forbes Marshall AV21 and BPT21 air vents directly through Awal Valve, an experienced industrial valve dealer in Ahmedabad supplying genuine equipment across Gujarat.
