L&T CS Ball Valve Class 300 (L1RF3C): Complete Technical Specifications, Applications, and Buying Guide

Introduction

In medium-to-high pressure industrial processing, maintaining high seal integrity and preventing unexpected pipeline shut-downs are critical operational goals. For applications exceeding standard low-pressure limits, the L&T CS ball valve with product code L1RF3C is engineered to deliver reliable flow isolation under ASME Class 300 pressure conditions.

Manufactured by L&T Valves, the L1RF3C model combines a single-piece unibody architecture with Class 300 pressure containment. Understanding its structural features, design ratings, and application compatibility helps engineers choose the right valve for demanding fluid systems.

Product Overview

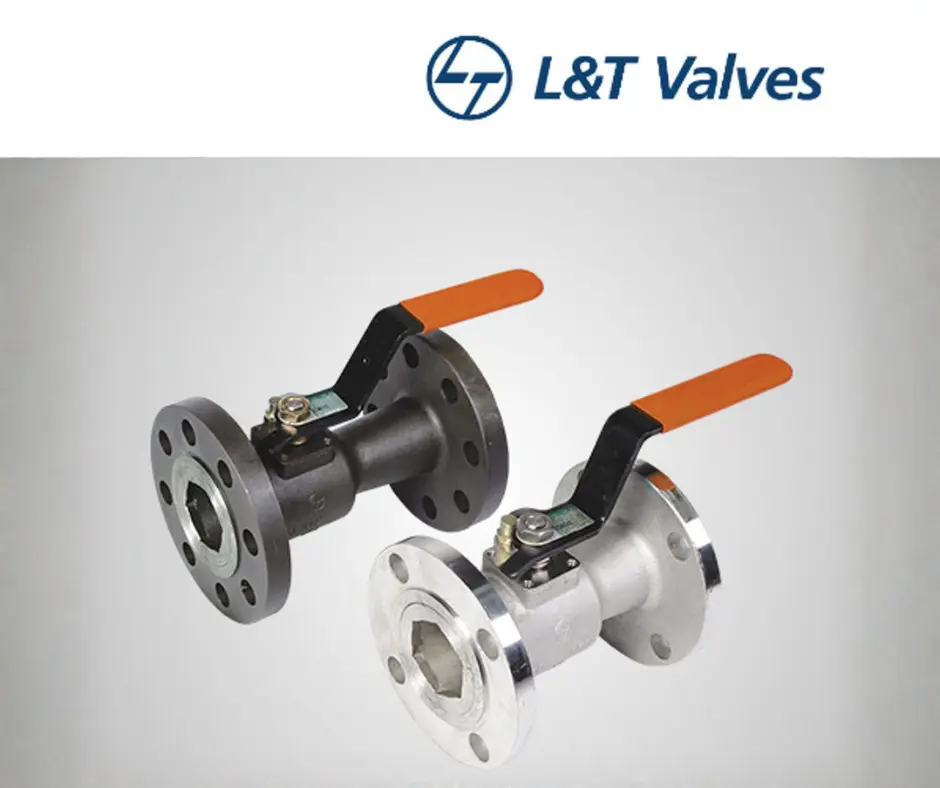

The L1RF3C valve is a Carbon Steel (CS), single-piece design, regular bore (reduced bore) floating ball valve rated for higher-pressure ASME Class 300 service.

In L&T's catalog coding system:

• L1: Represents L&T's Single-Piece Unibody Ball Valve design.
• RF: Denotes Raised Face (RF) Flanged End connections per ASME B16.5.
• 3: Indicates the higher pressure rating — ASME Class 300.
• C: Designates Cast Carbon Steel body material (ASTM A216 Gr. WCB).

Because the L1RF3C body is cast as a single solid unit, it eliminates external body joints and flange gaskets. This unibody construction provides high structural strength and significantly reduces potential fugitive emission leak paths under pressure surges or thermal stresses.

Technical Specifications

The technical parameters for the L&T L1RF3C ball valve are detailed below:

Key Features

• Class 300 Rating: Engineered with thicker wall construction and reinforced body flanges to handle higher operating pressures than standard Class 150 valves.
• Zero Joint Leak Path: Unibody design eliminates body-to-tailpiece joints, preventing external leaks in high-stress pipelines.
• Blowout-Proof Stem: Internal stem shoulder collar prevents stem blowout under high differential system pressure spikes.
• Antistatic Feature: Integrated electrical grounding springs maintain continuous conductivity between the ball, stem, and body to safely ground static charges.
• Certified Fire-Safe Design: Complies with ISO 10497 / API 607 testing, providing secondary metal-to-metal seating during emergency high-temperature fires.

Applications

The higher pressure containment of the L1RF3C valve makes it ideal for medium-to-high pressure processing lines:

• High-Pressure Oil & Gas Pipelines: Hydrocarbon gathering, refining lines, and high-pressure natural gas distribution.
• Power Plant Utilities: High-pressure boiler feedwater, condensate return lines, and auxiliary steam lines.
• Petrochemical Plants: Organic and inorganic fluid lines operating under Class 300 pressure ratings.
• Industrial Utilities: High-pressure hydraulic systems, process air, and chemical utility networks.

Benefits

• High Pressure Integrity: Capable of handling demanding Class 300 pressures safely.
• Fugitive Emission Reduction: Single-piece body construction minimizes environmental leakage risks.
• Extended Service Life: Solid SS 316 ball with mirror finish reduces operating torque and seat wear.
• Reduced Footprint: Compact single-piece reduced bore design reduces overall weight compared to multi-piece valves.

L&T Valve Dealer in Ahmedabad and Gujarat

Gujarat's major chemical, petrochemical, and power generation industries rely heavily on Class 300 flow-control hardware. Sourcing through a recognized L&T valve dealer in Ahmedabad ensures authentic products with Manufacturer Test Certificates (MTC) and full heat number traceability.

Key industrial regions with consistent demand for L&T Class 300 valves include:

• Ahmedabad: Industrial areas like Vatva, Naroda, Odhav, Changodar, and Sanand.
• Gujarat Industrial Belts: Vadodara, Ankleshwar, Bharuch (Dahej PCPIR zone), Surat, Vapi, and Rajkot.

Partnering with an established L&T valve supplier in Gujarat guarantees quick project delivery and expert technical support for complex specifications.

Why Choose Awal Valve

When procuring critical process equipment like the L&T CS ball valve (Class 300 Model: L1RF3C), Awal Valve offers reliable inventory, technical expertise, and quick supply options across Gujarat.

Why partner with Awal Valve:

• 100% Genuine L&T Products: Authentic products supplied with original Manufacturer Test Certificates (MTC).
• Ready Inventory: Stock availability for high-demand product codes like L1RF1C, L1RF1S, and L1RF3C.
• Technical Expertise: Guidance in cross-referencing pressure classes, flange tables, and media compatibility.
• Competitive Pricing: Market-aligned quotes for both project contracts and urgent MRO maintenance requirements.

Conclusion

The L&T CS ball valve (Product Code: L1RF3C) is an excellent flow isolation solution for ASME Class 300 flanged piping systems. Featuring a Cast Carbon Steel single-piece body, Stainless Steel 316 trim, and certified fire-safe construction, it delivers reliable, leak-tight performance for challenging industrial processes.

For price quotations, technical datasheets, or order fulfillment in Gujarat, contact Awal Valve—your trusted L&T ball valve dealer.

Frequently Asked Questions (FAQs)

Q1: What is the key difference between L&T ball valves L1RF1C and L1RF3C?

A: The main difference is the pressure rating class. L1RF1C is rated for ASME Class 150 service, whereas L1RF3C is engineered for higher-pressure ASME Class 300 applications.

Q2: What does "L1RF3C" stand for in L&T's catalog?

A: "L1" stands for Single-Piece Design, "RF" stands for Raised Face Flanged Ends, "3" signifies ASME Class 300 pressure rating, and "C" designates Carbon Steel (ASTM A216 WCB) body material.

Q3: Can an L1RF3C valve be installed in place of a Class 150 valve?

A: No. Class 300 flanged valves have larger flange diameters, thicker flange profiles, and different bolt hole dimensions compared to Class 150 flanges, requiring matching Class 300 mating flanges in the pipeline.

Q4: How can I procure authentic L&T L1RF3C valves in Gujarat?

A: You can source authentic L&T valves directly from an established L&T ball valve dealer like Awal Valve, ensuring every unit comes with valid factory test certificates.
