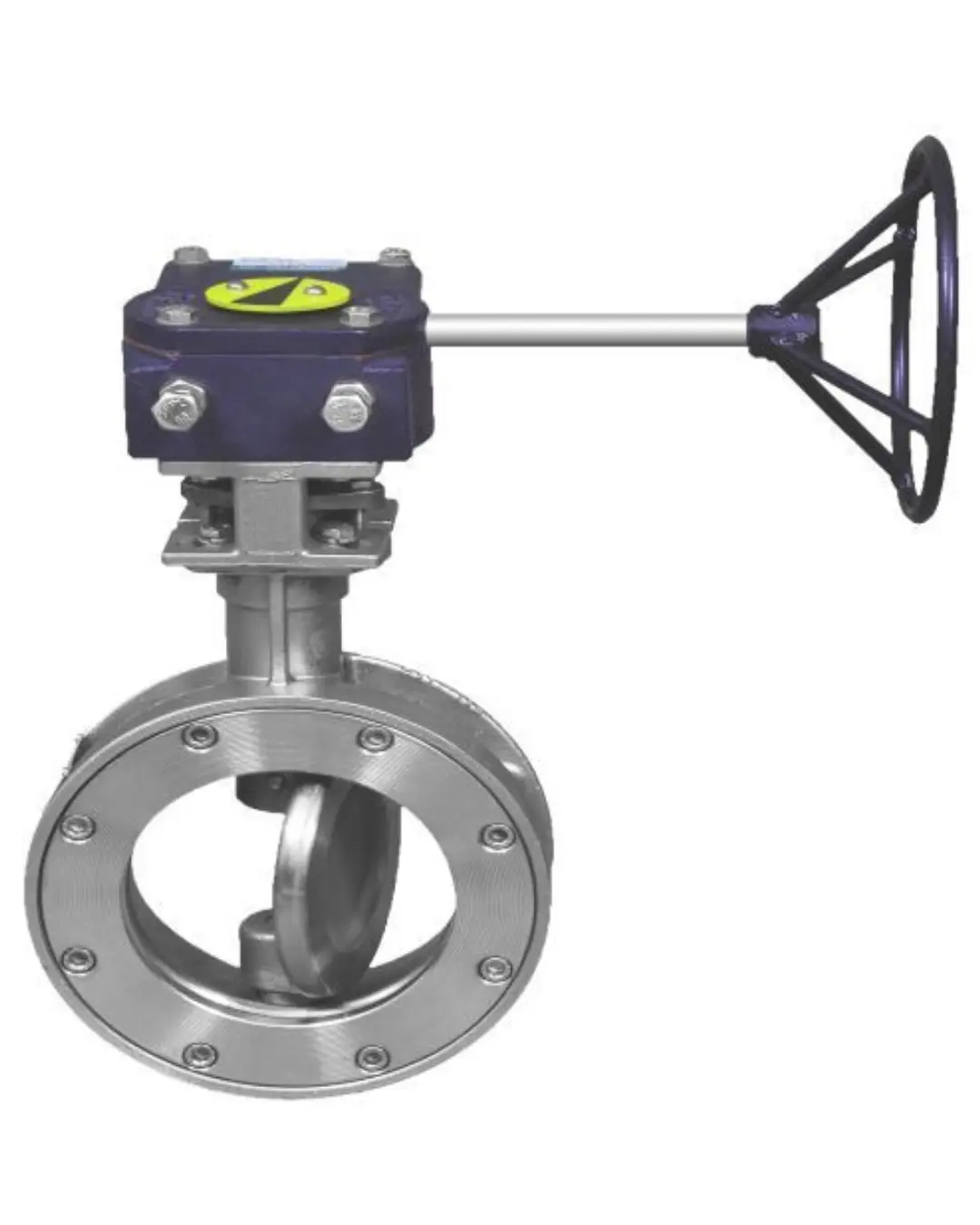

Triple Offset Butterfly Valve (Fire Safe Design)
Triple Offset Butterfly Valve (Fire Safe Design)
FlowBiz designs and manufactures high-performance Triple Offset Butterfly Valves (TOV) engineered for the most demanding industrial environments. Our metal-to-metal seated, fire-safe design is the premier choice for critical applications ranging from light vacuum to high-pressure throttling.
When absolute zero leakage and high-cycle reliability are non-negotiable, the FlowBiz Triple Offset Butterfly Valve delivers unparalleled performance, serving as a cost-effective and space-saving alternative to traditional gate, globe, or ball valves.
The Triple Offset Advantage
Our advanced geometry eliminates the friction and wear associated with standard valves:
- Frictionless Sealing: The triple-offset geometry ensures the disc only contacts the seat at the final point of closure, reducing torque and extending service life.
- Bi-Directional Zero Leakage: Engineered to maintain a bubble-tight seal in both flow directions.
- Low Fugitive Emissions: Designed to meet modern environmental standards by minimizing atmospheric leakage.
- Fire Safe Reliability: The metal-to-metal sealing system ensures integrity even under extreme thermal stress or fire conditions.
Technical Specifications
FlowBiz valves are manufactured to strict API and ASME benchmarks to ensure safety in high-stakes operations.
|
Specification |
Details |
|
Size Range |
2 inches to 12 inches (50mm to 300mm) |
|
Design Standard |
API 609 |
|
Face-to-Face |
API 609 Category “B” |
|
Flange Conformity |
ASME / ANSI B 16.5 Class 150 |
|
Pressure Rating |
As Per 150# B16.34 |
|
Temperature Range |
Standard up to 550 °C (Customized up to 550°C+ on request) |
|
Leakage Class |
Class VI (As per ASME B16.104) |
Material of Construction (MOC)
We use premium-grade alloys to ensure chemical and thermal resistance:
- Body & Disc: ASTM A 216 Gr. WCB | ASTM A 351 Gr. CF8 / CF8M / CF3M (Stainless Steel)
- Seat Options:Metal to Metal | SS316 + Graphite (Laminated) | SS316 + PTFE
Ideal Industrial Applications
The TOV series is specifically designed for industries where safety and precision are paramount:
- Oil & Gas / Petrochemicals: For high-pressure process lines.
- Refineries: Fire-safe protection for flammable media.
- Steam & Power Generation: High-temperature throttling.
- Chemical Processing: Handling aggressive fluids with zero leakage.
Leading Manufacturer & Supplier Across India
FlowBiz is the preferred partner for Triple Offset Butterfly Valves in the Indian market, providing expert engineering and rapid logistics.
Regional Powerhouse: Gujarat & Maharashtra
We provide dedicated technical support to:
- Gujarat: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Dahej, Sanand, and Navsari.
- Maharashtra: Mumbai, Pune, Nashik, Thane, Aurangabad, Nagpur, Satara, and Ambernath.
Nationwide Supply Network
FlowBiz serves the entire Indian industrial landscape, from Madhya Pradesh (Indore, Bhopal) to Tamil Nadu (Chennai, Coimbatore, Salem), ensuring world-class flow control is always within reach.
Why Partner with FlowBiz?
As an ISO 9001:2015 certified company, FlowBiz combines innovative design with rigorous testing (API 598). Our Triple Offset valves are lighter, smaller, and easier to maintain than traditional counterparts, significantly reducing your total cost of ownership.
Contact FlowBiz today for high-performance valve solutions. At FlowBiz, We Know The Flow.
