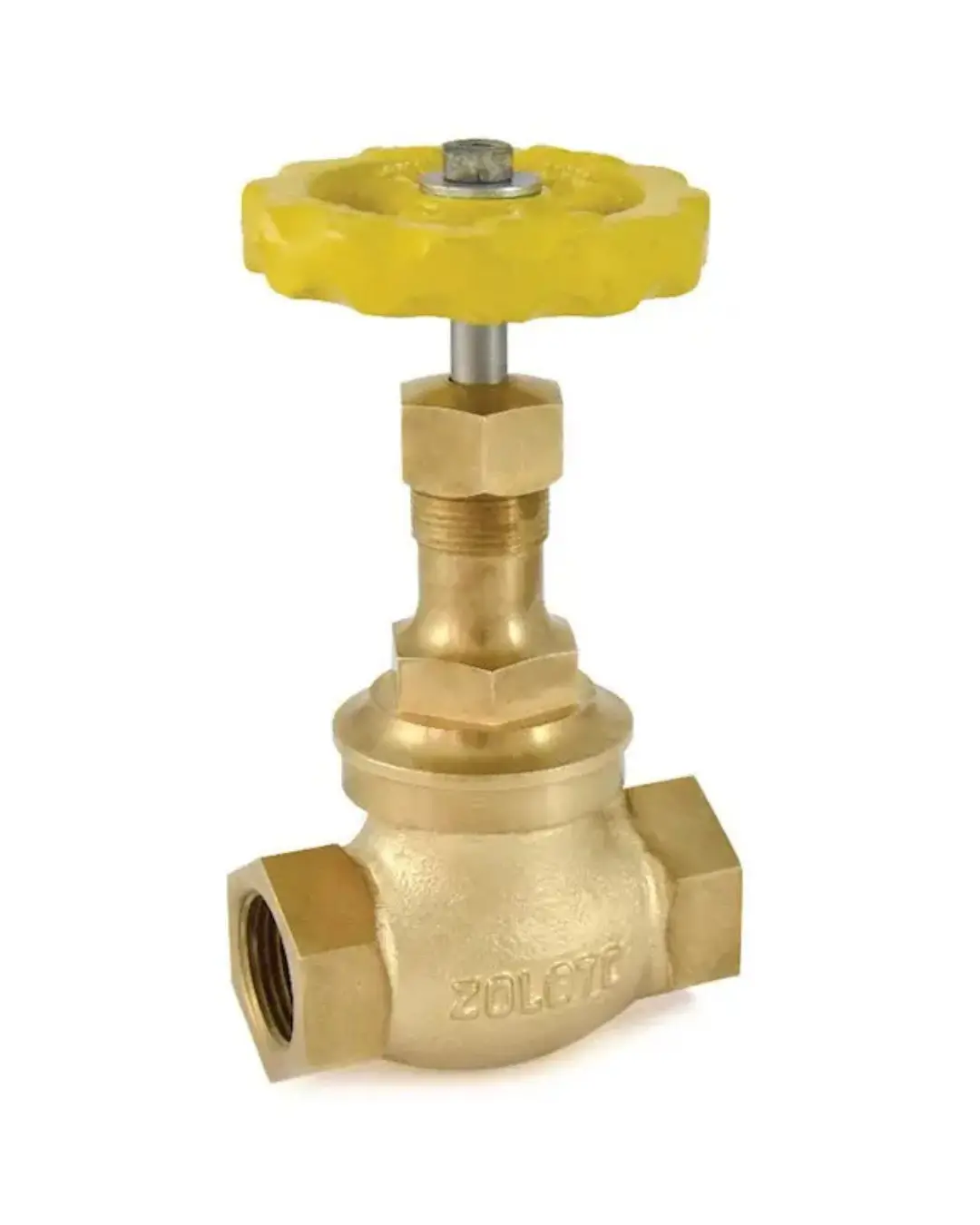

Zoloto 1002 Bronze Globe Valve No. 5 (Screwed)

The Zoloto 1002 Bronze Globe Valve No. 5 is built for heavy-duty industrial fluid regulation. Engineered with a heavy pattern design, inside screw, rising stem, and screwed female end connections, this valve provides high-pressure resistance and inline serviceability across water, oil, air, and gas distribution systems.

Key Product Features

• Heavy Pattern Construction: Built with extra body wall thickness to handle elevated operational stress and high-pressure media.
• Standard Screwed Connections: Female threaded ends compliant with IS 554, BS 21, and ISO 7 standards.
• Back-Seating Capability: Engineered with a provision for gland re-packing while the system remains under pressure, minimizing downtime.
• Leak-Proof Sealing: Equipped with high-grade PTFE gland packing for superior seal integrity under heat and pressure.
• Ergonomic Handwheel: Designed with a powder-coated sheet metal handwheel for a firm, comfortable grip during manual throttling.
• Optional Air/Gas Seating: Available with optional PTFE seating configurations upon request for specialized gas isolation applications.

Pressure & Temperature Ratings

• Hydrostatic Shell Test Pressure: 35 kg/cm²g (500 psig)
• Hydrostatic Seat Test Pressure: 20 kg/cm²g (285 psig)
• Maximum Working Temperature: 225°C
• Compatible Media: Water, Oil, Air, and Gases

Materials of Construction (MOC)

Dimensions & Sizing Specifications
